Containerised Boiler Rooms

Containerised Boiler Rooms

PBS POWER EQUIPMENT, s.r.o. design and manufacture containerised boiler rooms, which are employed for producing steam, warm or hot water for process use or heating. Boiler rooms are used as a central or decentralized source, especially in places where there is a need to accelerate construction of the boiler room.

TYPES OF THE CONTAINERISED BOILER ROOMS:
  • STEAM
  • HOT WATER
  • SUPERHEATED WATER

DESCRIPTION OF THE BOILER ROOMS

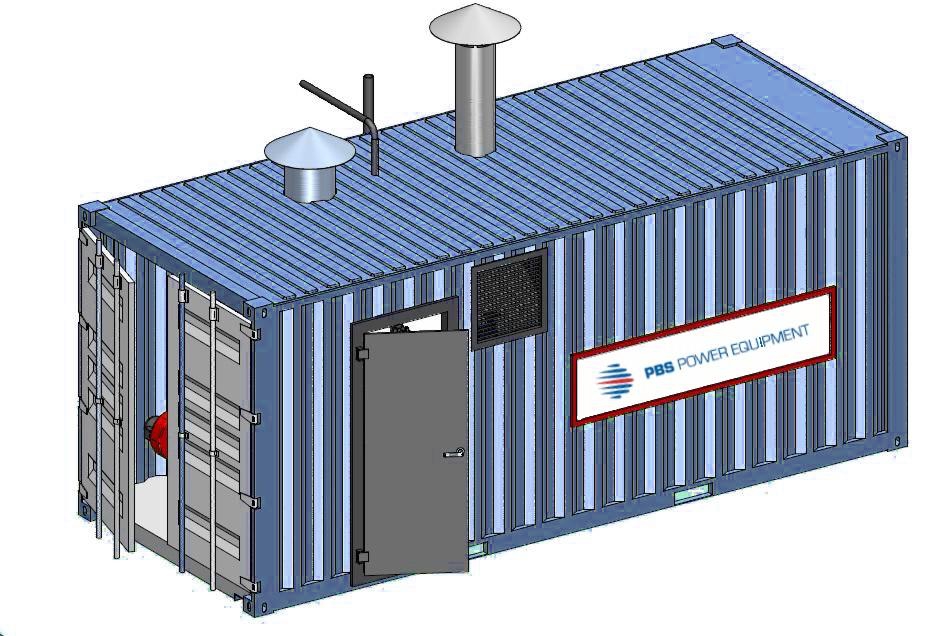

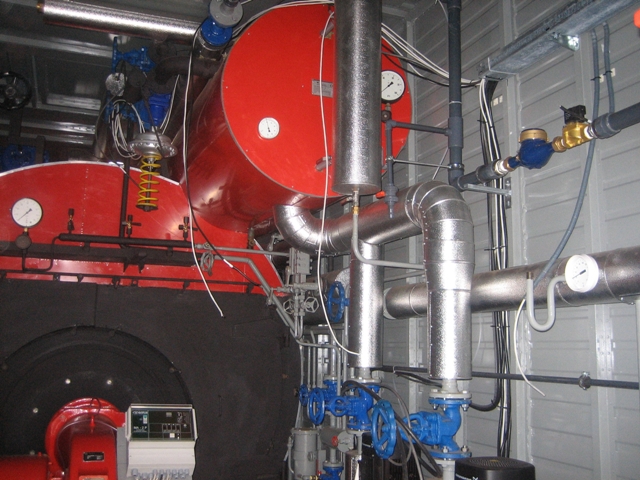

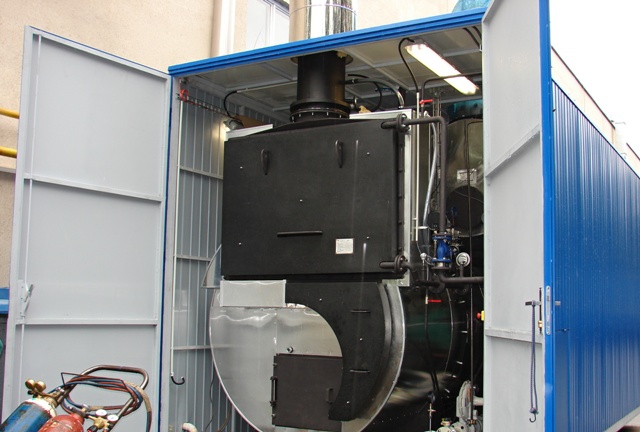

Containerised boiler rooms are completely equipped with machinery and electrical equipment placed into transportable containers. The equipment includes the necessary piping, including pumps, a water treatment unit and its thermal degassing. The portable boiler room is fitted with the appropriate wiring and measurement and control system for automatic operation. For each type of boiler room a self-supporting three-component stainless steel stack is supplied.

Boiler rooms are equipped with high quality certified modern Czech technologies (boilers, burners, containers, etc.).

BENEFITS:
  • Quick and easy installation
  • Completeness – portable boiler room is fully equipped and ready for operation
  • Small dimensions
  • Minimum space requirements
  • Easy transportation
  • Minimum requirements for construction work
  • Automatic operation with occasional operation (24 h or 72 h)
  • Modern technologies are used
  • Maximum safety
  • By combining several boiler rooms into one boiler system you can achieve specific requested outputs and very high outputs (up to 20 MW)
  • Qualified after-sales service and support
Technical parameters :
  • Rated output 50 – 6 300 kW
  • Efficiency 91 – 94 %
  • Type of boiler:
    • steam
    • warm water
    • hot water
  • Fuel:
    • natural gas
    • propane, propane-butane
    • low-calorific gases (biogas, sewage gas, ...)
    • extra-light fuel oil (heating oil)
    • light fuel oil (heavy gas oil)
